Outline Dimension (m): 6.2×1.5×1.2
Cutting Scope (m): 3.2×4.5
Machine Width (m): 1.5
Adaptive Slope (°): ±18°
Ground Pressure (MPa): 0.1
Total Weight (t): 12.5
Dinting Depth (mm): 1060
Ground Clearance (mm): 210
Pump Station Motor (kW): 90
Cutting Motor Power (kW): 56
Cutting Speed (r/min): 78
Economic Cutting Hardness (MPa): ≤40
Hydraulic System Pressure (MPa): 21
Hydraulic Pump : Single-plunger Variable-Pump
Fuel Tank Capacity (L): 420
Spray Form: Outer
Progression Width (m): 1.5
Supply Voltage (V): AC1140/660

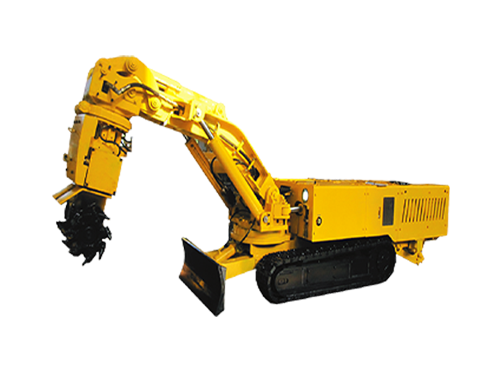

The entire machine has a compact structure with low barycenter, good stability, and strong slope climbing ability.
The entire machine is of good rigidity, high strength, deep dinting, and a wide range of cutting sections, which can be used for mechanized mining of steeply inclined coal seams.
The cutting mechanism is driven by a high-torque motor and a reducer. The drum can rotate at any angle, meeting the needs of various cross-sections.
The walking mechanism has a strong driving force and a self-locking device.
It can be used in conjunction with flexible-type shields and enamel chutes to carry out coal mining operations at 25°-30° mining face.
It can be used for tunnel repair, mainly on repairing the bulging floor and narrowing tunnels in underground mines through crushing, excavation, etc.; it can also be used for excavating cement troughs.
It can quickly replace milling and mining drums, drilling machines, operating platforms, cable bolts cutter, and beam supports, achieving tunnel-repair functions, including tunnel wall repairing, operating vehicles/cable bolts/roof bolter cutting, shed substituting, etc., meeting various operational requirements for restricted tunnel space.
